bsm 200: blind spot monitoring with rear cross traffic alert

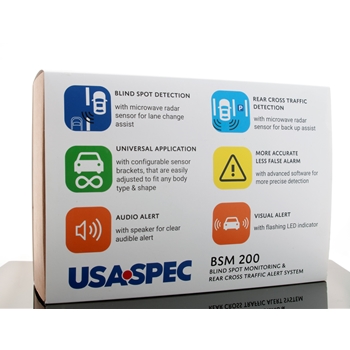

BSM 200¹
Blind Spot Monitoring & Rear Cross Traffic Alert System
with OEM-Grade Microwave Radar Sensors
for Universal Application

Presenting the industry's most advanced and accurate Blind Spot Monitoring and Rear Cross Traffic Alert system. Using multi-channel technology and OBD-II data, the BSM 200 provides OEM like accuracy in detecting and warning of moving vehicles in the blind spots. It has been vigorously debugged and road tested to minimize false alarms and to ensure its functionalities are at par with OEM systems.

Detects and warns the driver of vehicles in the blind spot when changing lanes
Automatically activates when the speed reaches 18.5 mph (30 km/h) and deactivates when the speed is under 18.5 mph (30 km/h)
Detection zone: 33ft (10m) long by 1 standard highway lane width, behind the B-pillars of both sides for the vehicle
Detects and warns driver of vehicles in the detection zone traveling at a speed of 6 mph (10 km/h) or greater

Detects and warns the driver of crossing traffic when backing out of driveways or parking spaces
Automatically switches to RCTA mode when the vehicle is put in reverse
Detection zone: automatically increase to 98ft (30m) on both sides of the vehicle starting from the radar sensors
Detects and warns driver of objects entering the detection zone (will not give out warning of stationary objects)

Compatible with all vehicles 2004 and up with OBD-II ²

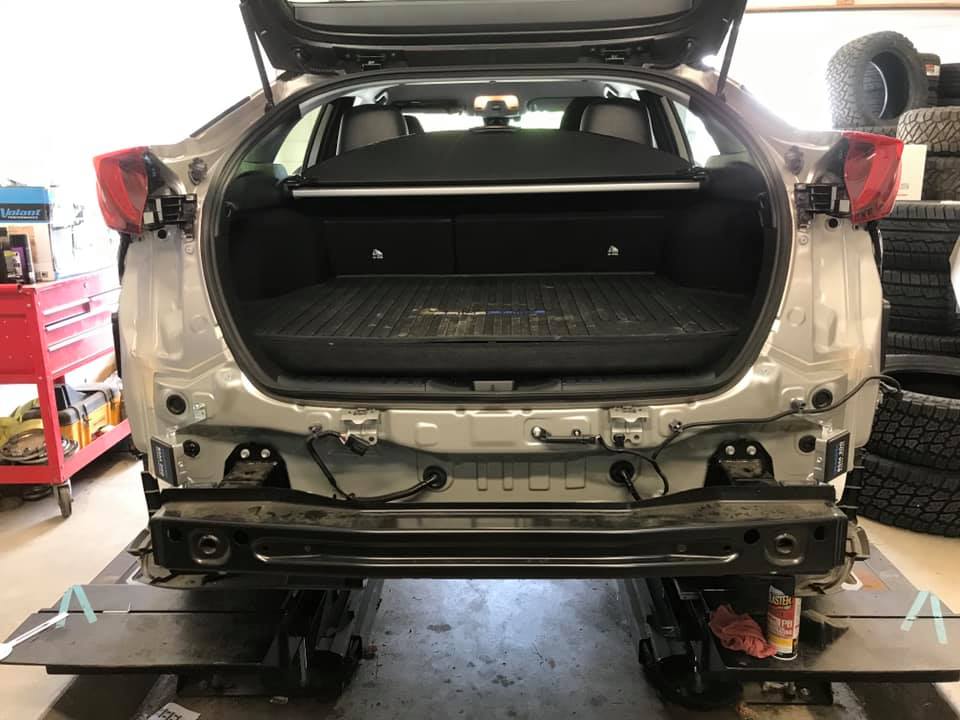

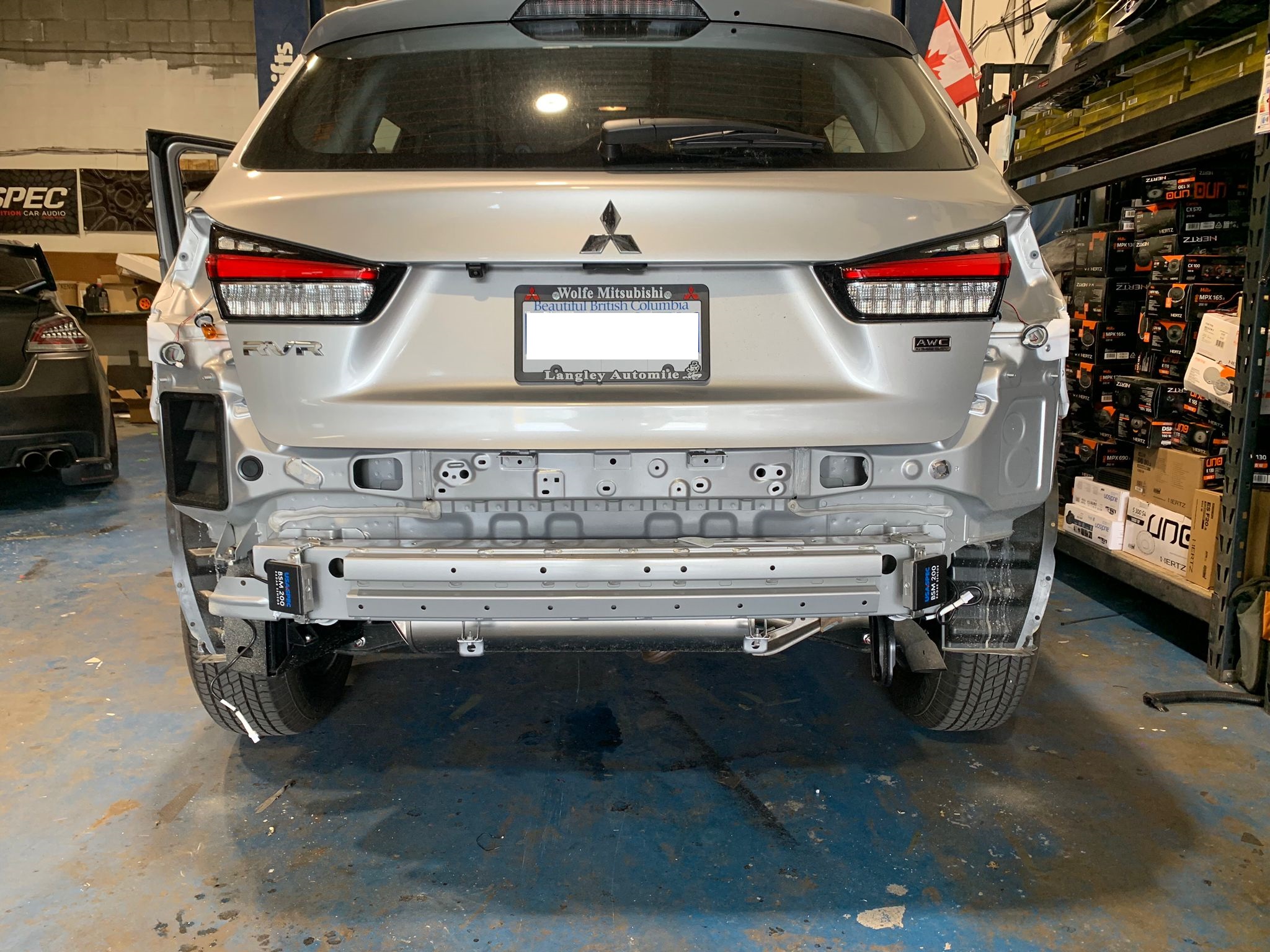

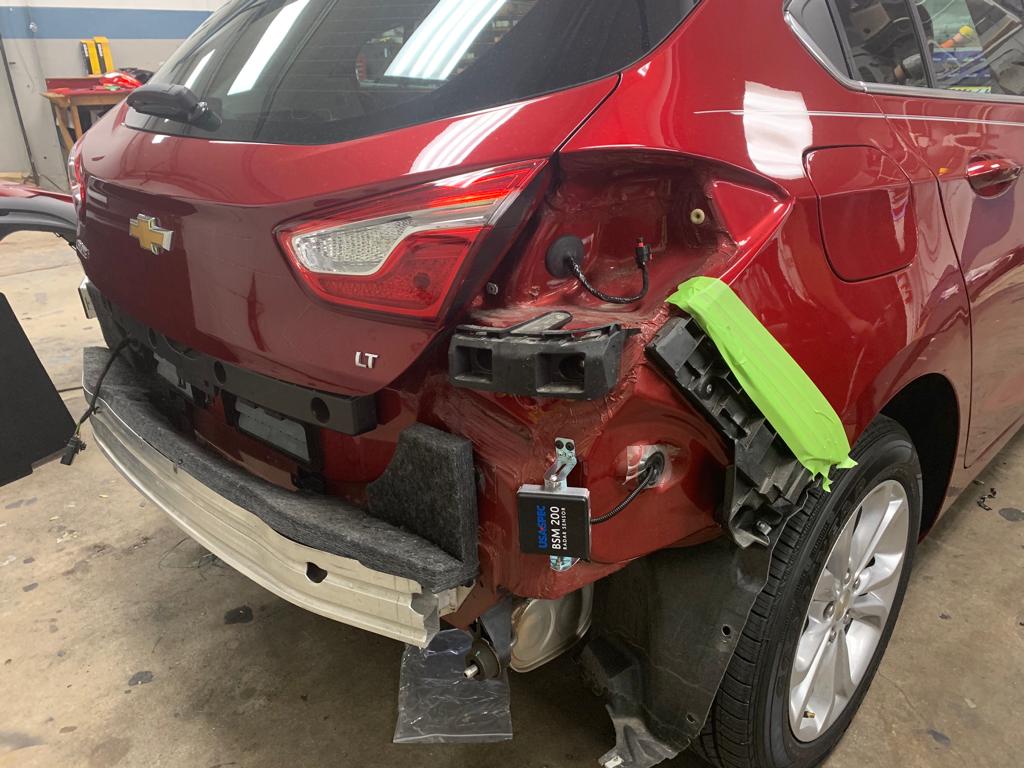

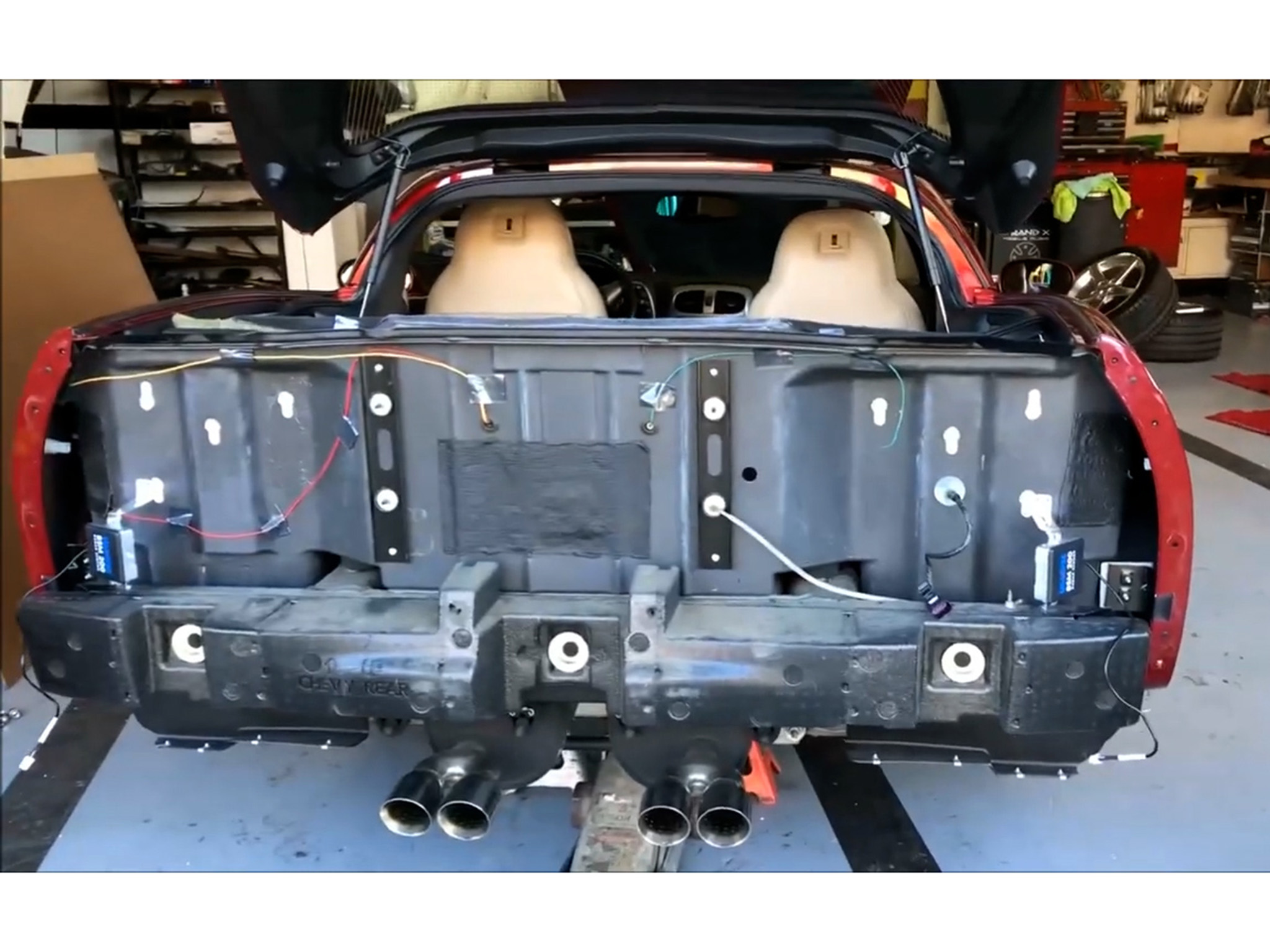

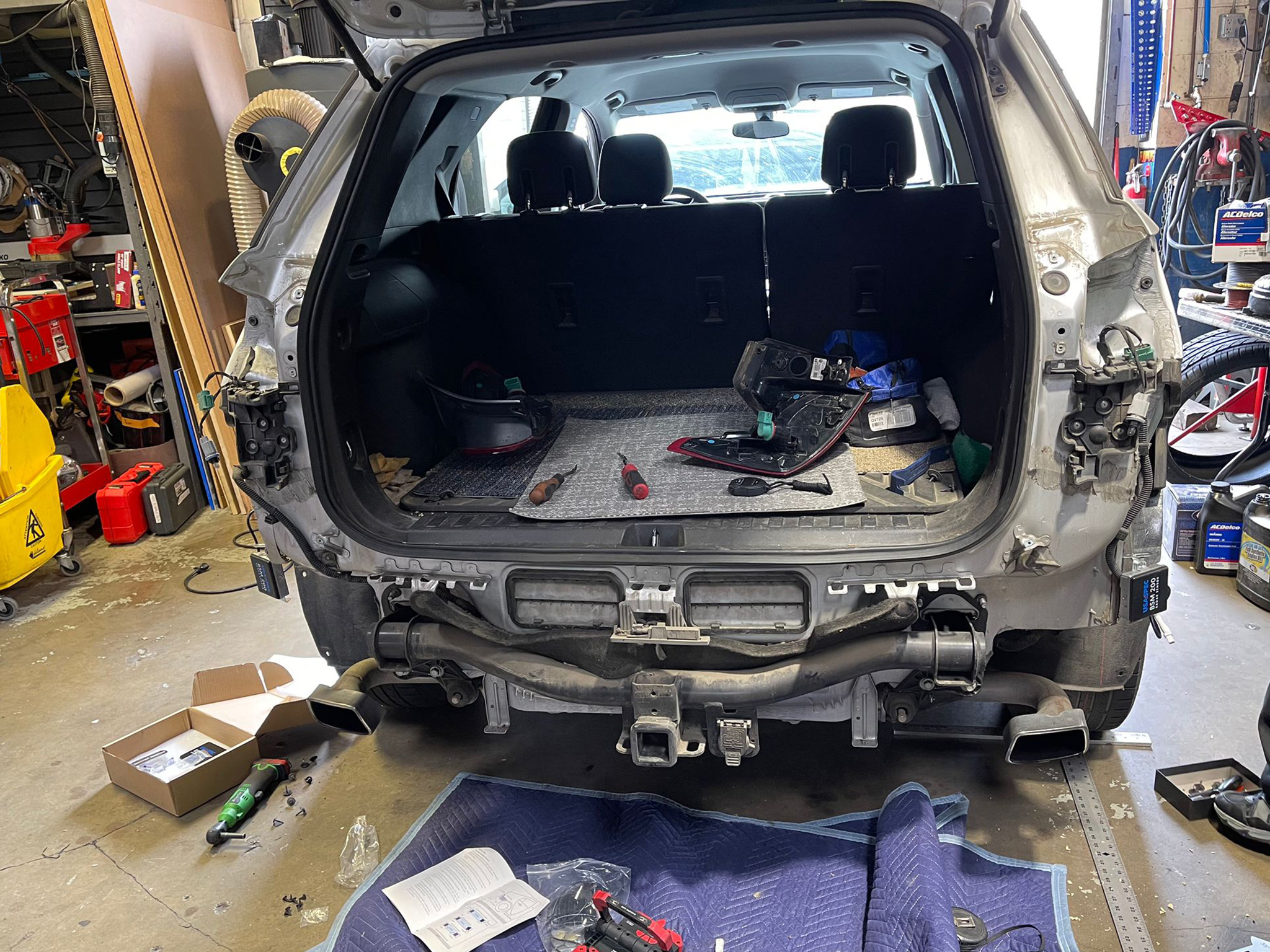

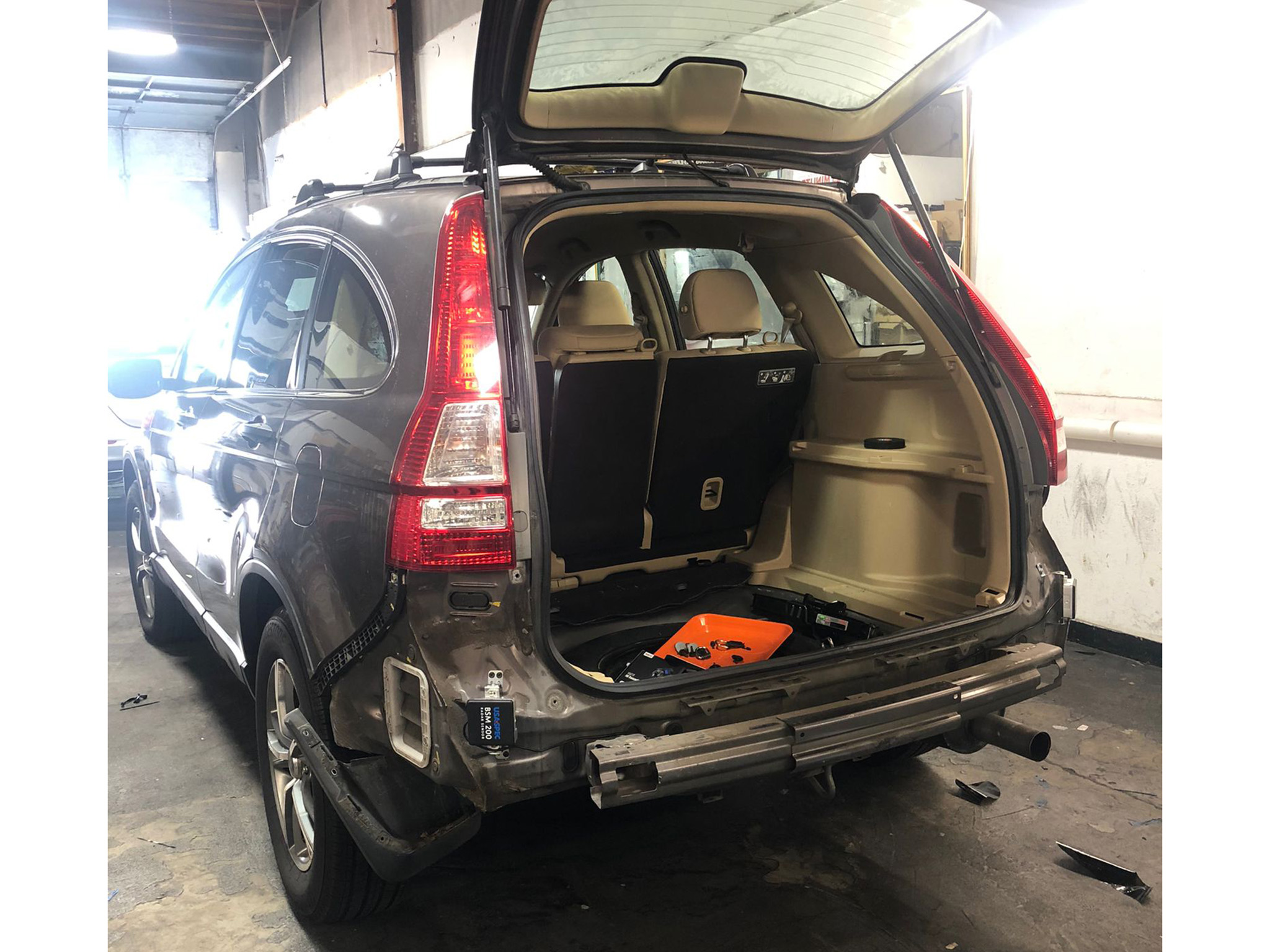

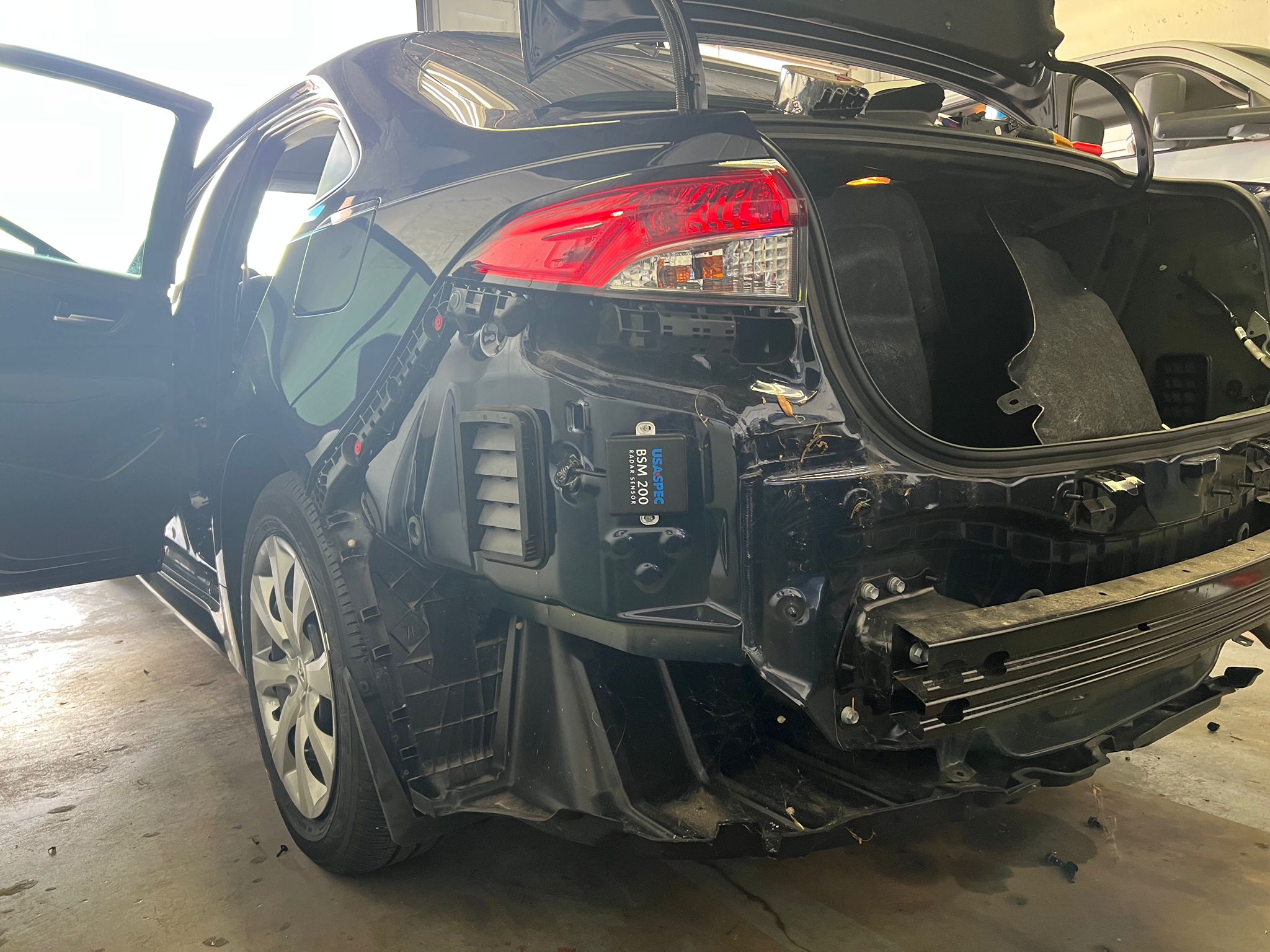

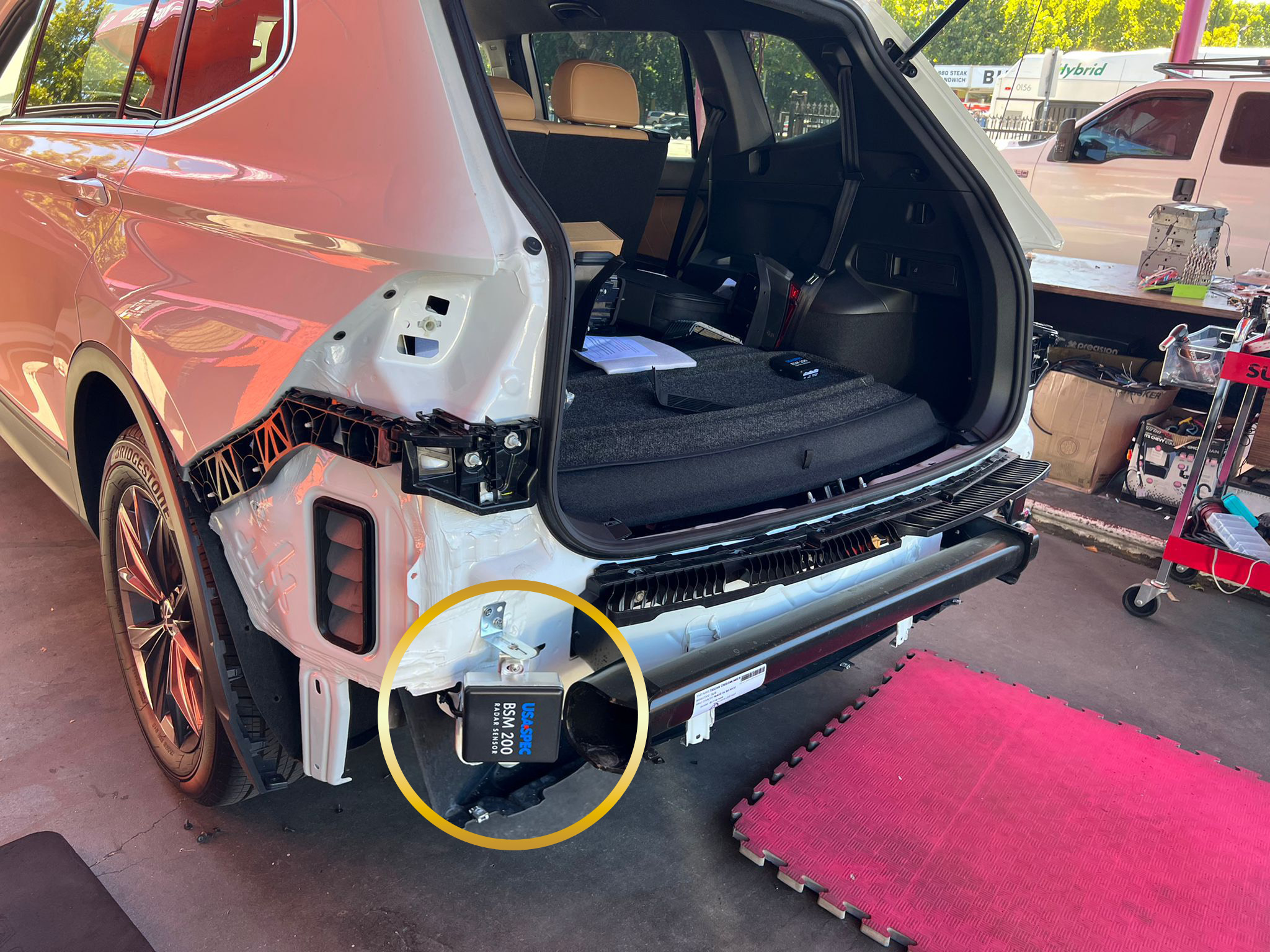

Configurable brackets that can be easily adjusted to fit any vehicle body types

Multi-channel technology to accurately detect and measure the distance, speed, and angle of moving objects
Multi-directional detection capabilities for detecting vehicles regardless of the direction they are moving (i.e. approaching, passing, or keeping pace)

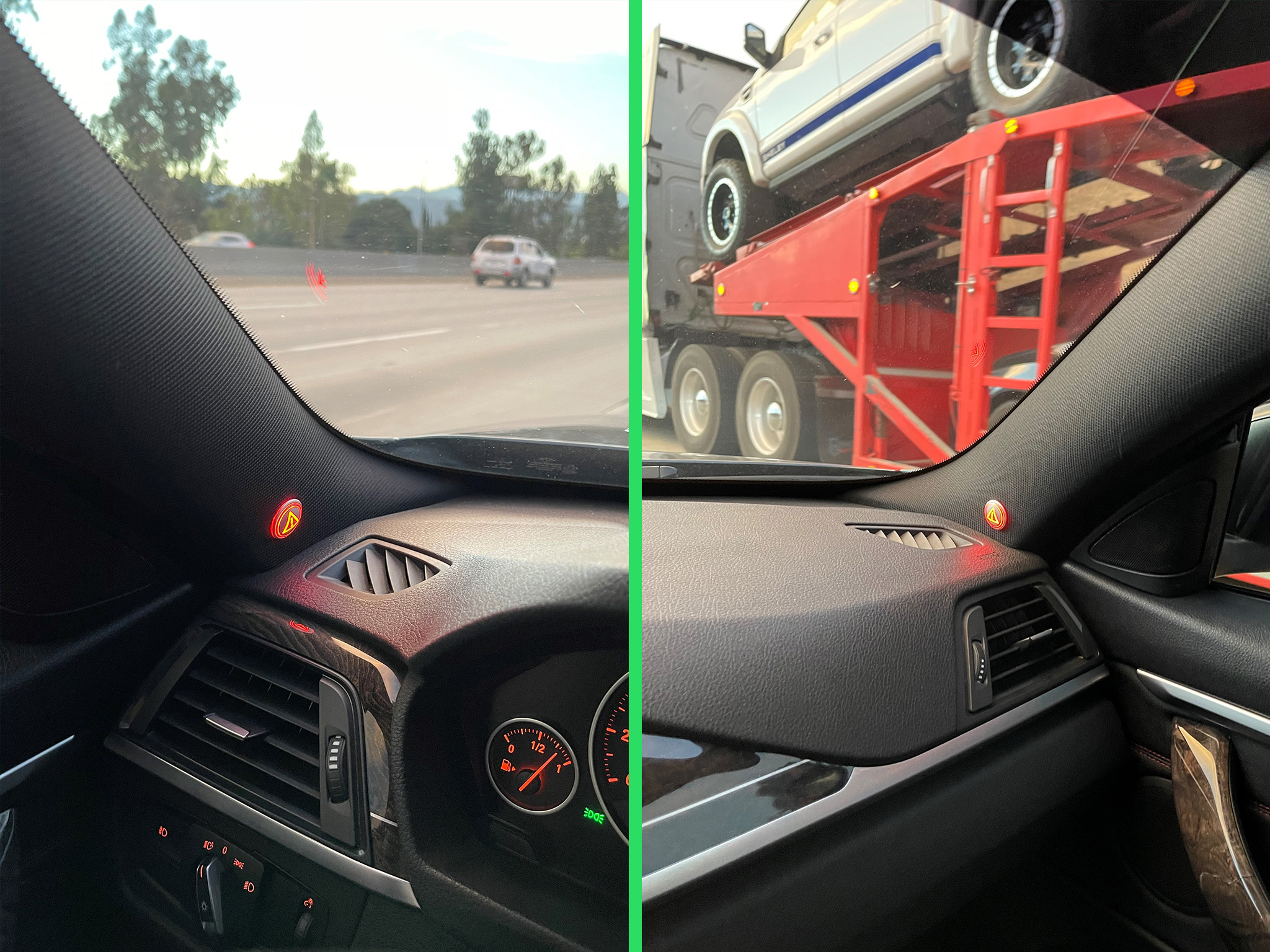

LED indicators and speaker to provide driver with clear visual and audible warnings of objects in detection zone
Flashing LED with warning beeps when turn signal is activated while the object is still in the detection zone.

1. The Blind Spot Monitoring (BSM) and Rear Cross Traffic Alert (RCTA) system is to be used as an auxiliary tool only and is not a substitute for careful driving. It is the driver’s responsibility for the safety of lane changing, backing up, and other maneuvers. The system does not remove the need to check over your shoulder and the mirrors when performing such maneuvers.

2. Vehicle's rear bumper must be made of non-metal material.

	Product Manual
	Product Demo Video

BSM 200 Reviews

BSM 200 fits the following vehicle(s):
